ncs3100

We perform supply method / measurement method
(optical / electrical characteristic inspection)
that meets the customer's request from various
supply methods.
It is a device that automatically sorts each storage box
according to rank.

For document requests and inquiries, please contact us using the email form below or by phone.

basic specifications

Applicable device Various chip parts (1.0×0.5~8.0×8.0[mm])
Parts supply Parts feeder
Measurement stage 1 stage
Option 2 OR 3 stage
Measurement contact
method
Side, back, top contacts
Cycle time Fastest 0.16 [seconds / piece]
(measurement time 90 msec included)
Number of classifications 128 / 256 / 512 classifications
Power supply Single-phase AC200 [V], AC220 [V] AC230 [V]    50/60 [Hz]
(transformer tap changer)
External dimensions W1,165×H1,620×D891/1620[mm]
Touch screen
Supports  languages
Japanese, English, Chinese, Korean
※   Equipment specifications and processing capacity vary depending on the size and shape of parts, measurement time,
      number of measurement items, etc., so we will make a decision after consultation.
※  The photos shown are for illustrative purposes only. Please note that the actual color may differ due to shooting
    and printing.

Device classification handler lineup

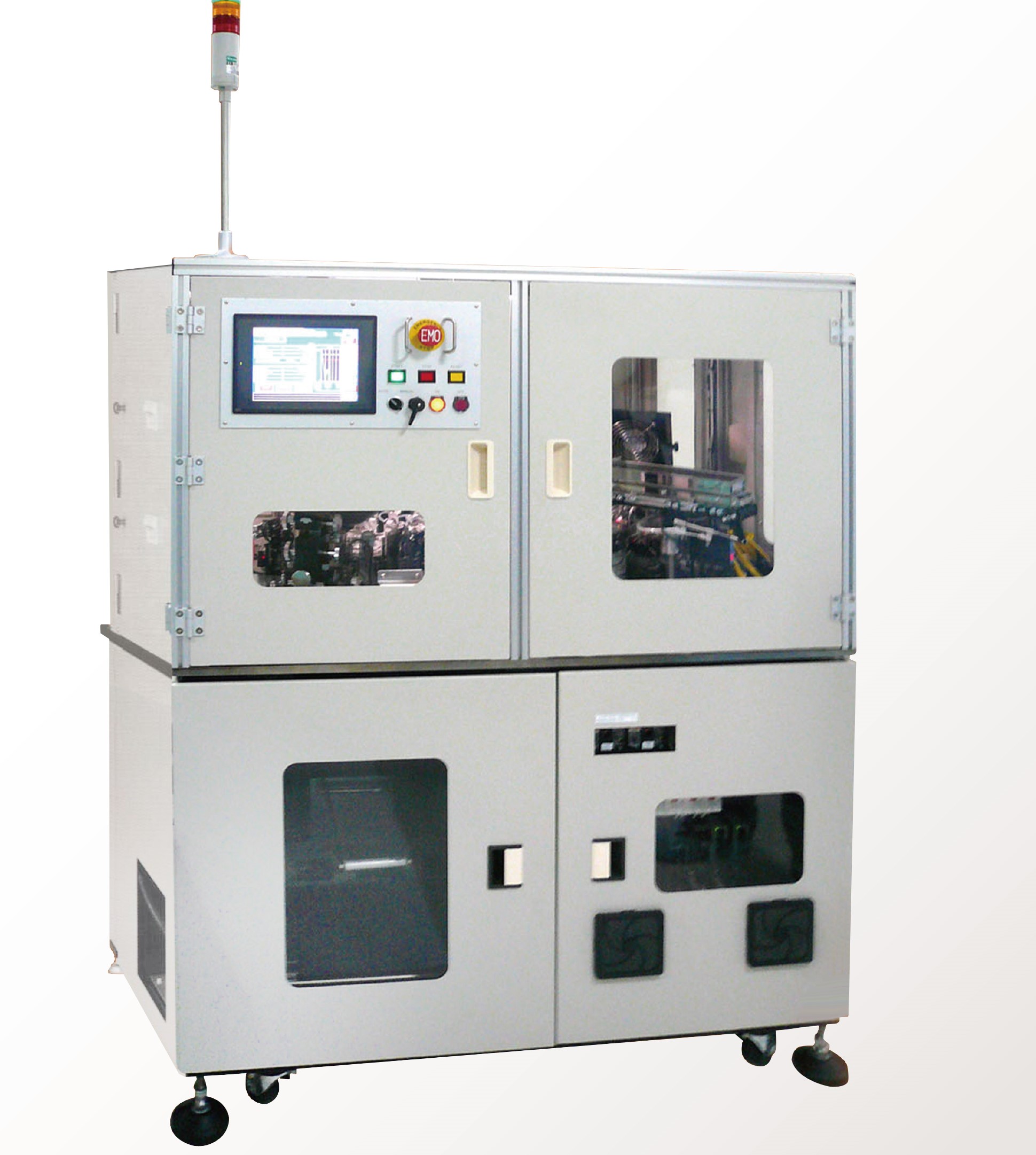

NSC4100
Device classfication
handler
NCS-4100 series

It is a device classification handler
mainly for exclusive use of
small devices  backside probe.
